Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: MG
  • Model Number: ML18
  • Theory: Solid State Relay, Electromagnetic Relay
  • Usage: General Purpose
  • Size: Miniature, 27.4*14*35.6
  • Protect Feature: Sealed
  • Contact Load: High Power
  • Functions: LED indicator,flag indicator, manual button (test button)
  • Coil volts: 6V, 12V, 24V, 48V, 110V, 120V, 220V, 230V, 240V
  • Certifications: UL
  • Cover choice: plain cover (clear cover)
  • DC relay: 6V, 12V, 24V, 48V, 110V
  • AC relay: 110V, 120V, 220V, 230V, 240V
  • Configuration (changeover): 1C (5 pin/ SPDT)2C (8 pin/ DPDT) 3C (11 pin/ 3PDT) 4C (14 pin/ 4PDT)
  • Relay socket: Customed

Packaging & Delivery

Packaging Details Delivery Detail: Shipped in 30 days after payment
Delivery Time Shipped in 30 days after payment

Magnetic Relay High Quality Supplier High Power Latching Relay with Large Capacity

Detailed Images

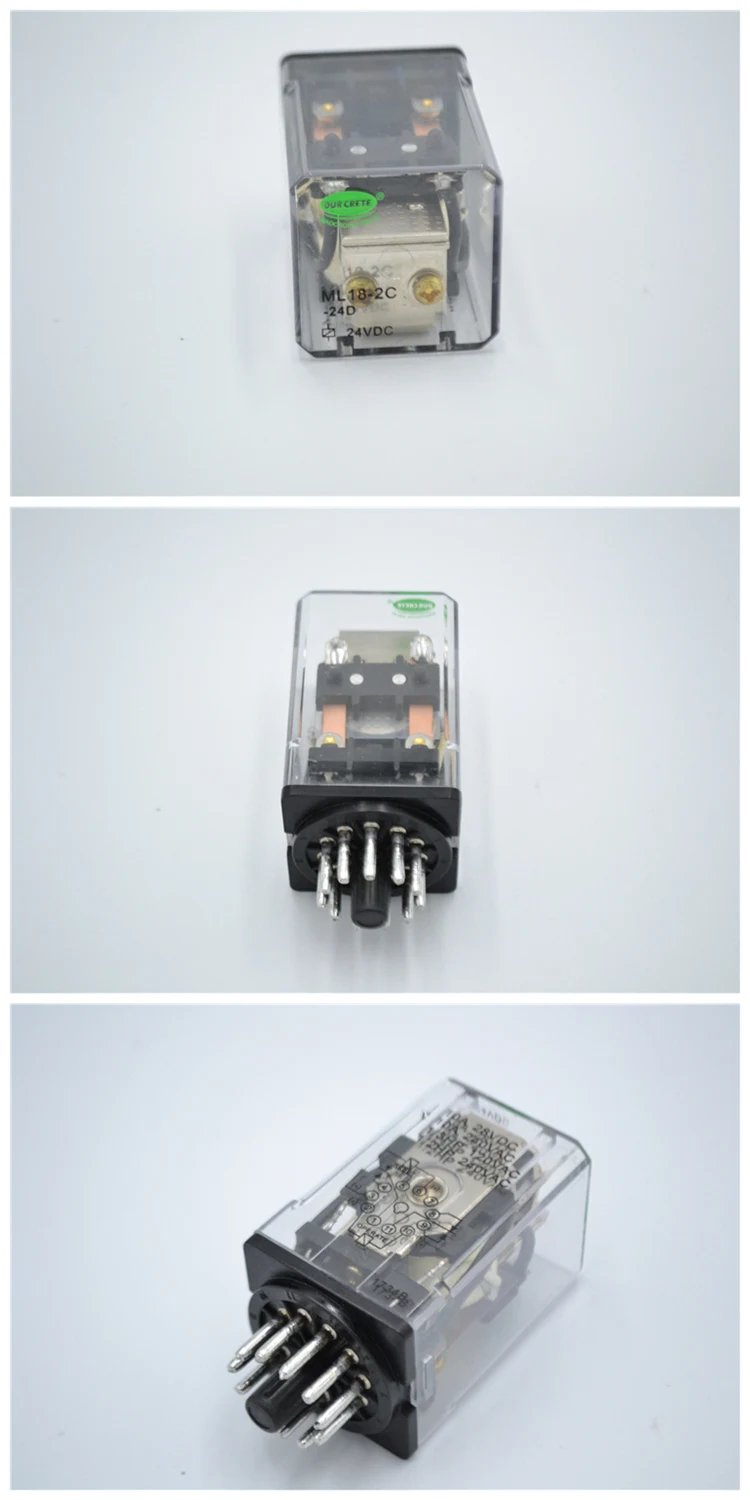

Magnetic latching relay with 11 pin octal base.
Operates by pulsed input and maintains last position.
10A contact rating.
DPDT contact arrangement.
ML18 magnetic latching relay are available in a wide choice of ac or dc voltages.

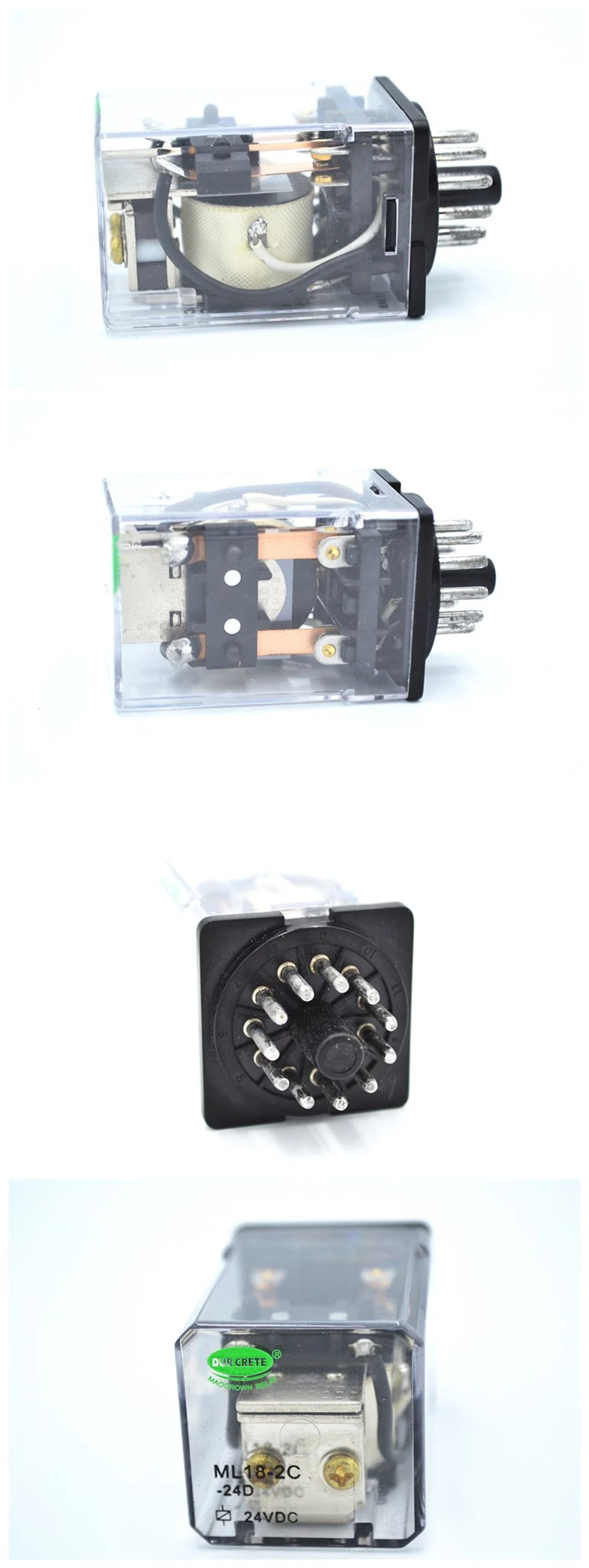

Mylar insulator are added between the coil & frame to improved dielectric withstanding voltage.
Product Description





Contact rating



ML18-2C

Contact capacity resistive load

(Cos.=1)

10A 28VDC

10A 240VAC

Motor

120VAC

1/3HP

240VAC

1/2 HP



Coil rating

Rated voltage (V)

Coil resistance

(Ω)

Min. pull-in

voltage

Min. dropout voltage

Max. allowable

voltage

Power consumption

±10% at 25

% of rated voltage at 25

Dual wound

6VDC

22/22

4.2

4.2

110 Max.

Approx.

1.64W

12 VDC

90/90

8.4

8.4

24 VDC

350/350

16.7

16.7

48 VDC

1400/1400

33.5

33.5

110/125 VDC

9000/9000

77

77

Single wound

6VAC

32

4.8

4.8

Approx.

2.0VA

12 VAC

120

9.6

9.6

24 VAC

472

19.2

19.2

48 VAC

1800

38.4

38.4

120 VAC

10000

96

96

240 VAC

40000

192

192



Specifications

Coil duty cycle

(nominal voltage)

Single coils are continuous duty

Dual coils are intermittent duty

Contact resistance

50mΩ maximum

Operate time

AC: 30mS maximum.  DC: 20mS maximum

Release time

AC: 30mS maximum.  DC: 20mS maximum

Insulation resistance

1000MΩ minimum at 500VDC

Dielectric strength

Between open contact: 1000 VAC for 1 minute

Between current carrying parts to ground: 1500VAC for 1 minute

Temperature (operating)

-45 to +65(AC); -45 to +70(DC)

Mechanical life

10,000,000 operations,no load

Electrical life

100,000 operations @rated load

Contact material

AgNi glod plating

Weight (approx.)

93g
